Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )

  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
Lieu d'origine Chine
Nom de marque LAUNCH X431
Numéro de modèle pour le lancement X431 SmartLink C 2.0
Quantité de commande min 1
Prix $599
Détails d'emballage 44cm*38cm*14cm /4,6KG
Délai de livraison 1 journée de travail
Conditions de paiement T/T, Western Union et MoneyGram
Capacité d'approvisionnement 1000

Contactez-moi pour des aperçus gratuits et des bons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Nom du modèle pour le lancement X431 SmartLink C 2.0 Origine Chine continentale
Qualité Supérieure Caractéristiques particulières Le Bluetooth, le Wifi.
Voltage HD SmartLink C 2. Il est à l'intérieur.0 N'exclut pas les produits OEM. La mise en service du module SmartLink X431 est assurée par un module C 2.0
Caractéristiques 1 Travailler en tant qu'IVC (Interface de Communication Véhicule) Caractéristiques 2 Fonctionner comme un appareil PassThru J2534 local
Caractéristiques 3 Fonctionner comme un appareil PassThru J2534 distant Soutien 1 Diagnostic complet du système
Soutien 2 Se conformer à CAN/DOIP/CAN FDIJ2534 Soutien 3 Lecture de code, Nettoyage de code
Soutien 4 Lecture de flux de données
Mettre en évidence

Vehicle Data Link Connector Launch X431

,

Launch X431 SmartLink C V2.0 Diagnostic Device
Laisser un message
Description de produit

Product Description

  1. Compatible with LAUNCH tools, OE tools or any other diagnostic tools
  2. Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
  3. Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
  4. SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics

Launch SmartLink C V2.0 Remote Diagnosis Device

The SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink B (Business), as a SmartLink Service Provider, can accept remote repair orders issued by SmartLink C users via SmartLink Service Platform.

Launch X431 SmartLink C Features

1. Compatible with LAUNCH tools, OE tools or any other diagnostic tools
2. Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
3. Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
4. SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics

Requires Activation card

SRDs SmartLink:
Super Remote Diagnosis Solution:
SRDs is comprised of SmartLink C, SmartLink B and Cloud Platform.
The SmartLink C can be connected to the vehicle, and the SmartLink B can be connected with any diagnostic device.
The remote diagnosis will be carried out on the SmartLink platform.

Launch X431 SmartLink C Service Platform:
SmartLink Platform is used to pair the connection between SmartLink C and SmartLink B operated with the internet browser.

SmartLink C user can post the remote diagnosis request on this platform. SmartLink B user can see the requests from their clients and accept the request to do the remote diagnosis.

How Does the LAUNCH SMARTLINK REMOTE DIAGNOSIS WORK?
This picture may help you better understand the complete procedure of the Smartlink remote diagnosis.
Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector ) 0

LAUNCH X431 SMARTLINK C TECHNICAL PARAMETERS

  • 3.97“ Single-Touch Screen, 320 x 480
  • Working Voltage: DC 9V ~ 36V
  • Communication method: Ethernet
  • Type B USB 2.0
  • Storage: 8GB
  • Memory: 256M
  • Power Consumption: < 6W
  • Working temperature: -10°C ~ 50°C
  • Storage temperature: -20°C ~ 60°C
  • Storage humidity: 10% ~ 90%
  • Dimension: 204 x 110 x 45 mm
Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector ) 1

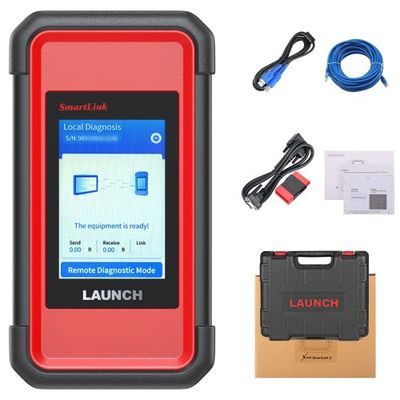

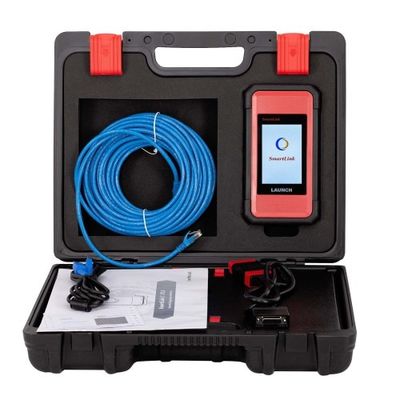

Launch X431 SmartLink C Packing List:

The following accessory items are for reference only. For detailed items, please consult with a local agency or check the packing list supplied with the device.

SmartLink C Dongle – For SmartLink Service Provider
OBD II Extension Cable – Connects the dongle to the VCI of the compatible diagnostic tool
CAT-6 Crossover Cable – Connects the dongle to the network modem
Power Adaptor – Supplies power to the dongle through an AC outlet.
